Customized industrial ovens and furnaces built based on your condition and specifications. Custom
designed and manufactured for processes that never existed before, and
our machines are borned with heats recycling system to reduce energy consumption.

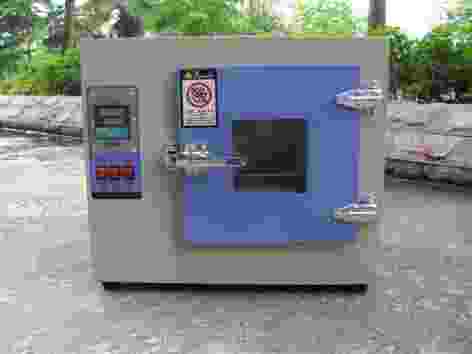

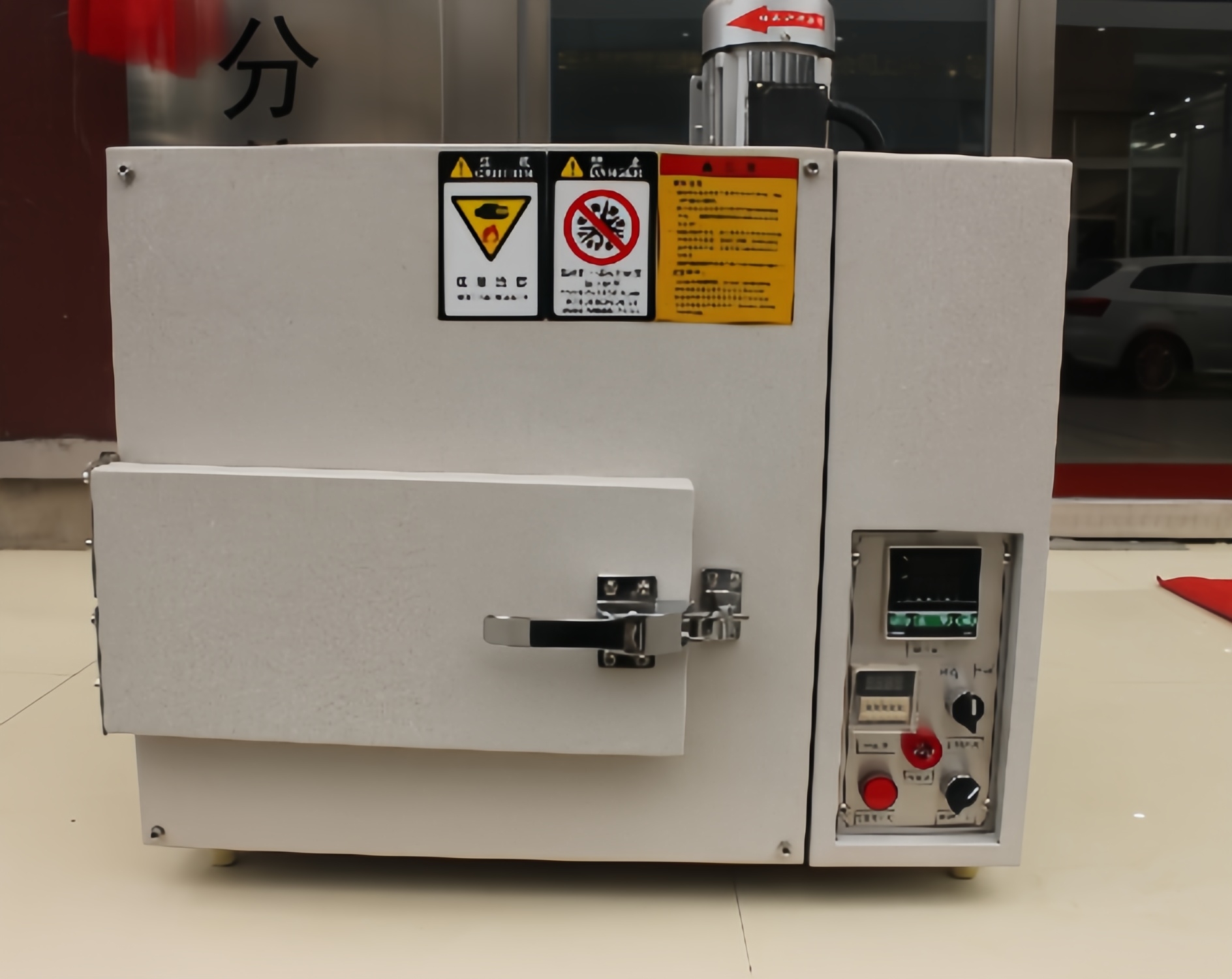

Benchtop oven, High reliability to meet the demanding production and laboratory applications, such as curing, drying, aging, testing, and other process-critical applications
Our Benchtop oven feature customized airflow with adjustable louvers to ensure exceptional temperature uniformity throughout the furnace. These high-performance furnaces deliver temperatures up to 300°C (572°F) and are great for such processes as annealing, aging, stress relieving and other process critical applications. Besides, the Oven is available in cabinet and benchtop models. The cabinet furnace is suited for volume production while the benchtop model, with its small footprint, is ideal for high temperature process development in a laboratory. Standard digital controls regulate temperatures within tight tolerances and provide high limit protection. For more advanced control choose the optional Protocol microprocessor-based temperature and hi-limit controller with large LCD display and real time clock for auto start capability. Data-logging functionality enables reporting and analyzing and data files can be exported via the controller’s USB port. Modbus RS485 communications are included for easy data access.
|
Materialof outer shell |
1.Madeof 1.5mm thick Q235 cold-rolled
steel plate (best overall strength, plasticity and welding properties), bent
and welded
2.Stand on the ground.
|
|
Surfacetreatment |
1.Surfacegrinding, polishing, and
phosphating (which can increase the corrosion resistance of metal and the
adhesion of paint)
2.High temperature plastic spraying
(large corrugated type) can prevent rust and corrosion resistance.
3.Colors are Waiting for customer
confirmation.
|
|
Chambermaterial |
Madeof 1.5mm SUS304 stainless steel plate, it keeps the inner tank clean, dust-free, rust-proof, corrosion-resistant, and easy to clean. |
|
OvenBody |
Madeof 50*50*3mm angle iron Maintain the load-bearing strength of all sides inside and outside thebox, andretain the thermal expansion and contraction coefficient to prevent box deformation. |
|
Insulationmaterial |
Adopted100K thickened aluminum silicate rock wool It has the characteristics of non-combustible and strong heat insulation, thickness is 150mm |
|
Doors |
1.Oneside opening door，Install 2 pieces of chrome-plated
triangular hinges to prevent the door from sagging.
2.The door lock is equipped with a
self-made square steel door lock, which has strong pre-tightening force and
is easy to operate.
|
|
AirExchange |
Airinlet and outlet with adjusting valves on both sides To adjust the air volume for a better temperature distribution |
|
Motor Fans |
1setof 0.37KW Fan motors, for hot air recirculation |
|
Turbine |
Fanwheel with 9inch turbine |
|
HeatingPipe |
Itadopts stainless steel U-shaped heating tube with heat sink, which can make the temperature of the heating tube evenly distributed. |
|
HotAir Generated |
Freshair is introduced from the air inlet of the oven into chamber where the heating pipes are. After the air is heated, it is circulated inside theoven, andexhausted from the exhaust port. |
|
Controlsystem |
Adoptdigital thermal control, PV and SV dual LED display function Comes with P.I.D self-tuning module calculation output, precise control |
|
HeatingControl |
SSRcontrol each group of heating tubes |
|
Themo. Sensor |
TypeK thermocouple for temperature inspection. One for control, the other for monitoring |
|
Others |
Controlelectrical appliances are from Schneider |

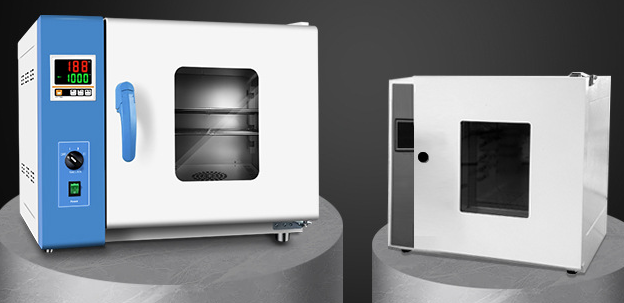

Besides above customized oven, we also have standard one:
|
Type |
Vertical electric constant temperature Hot Air recirculation drying oven |
|||
|
9030A 9030B |
9070A 9070B |
9140A 9140B |
9240A 9240B |
|
|
Power supply |
220V 50HZ |
|||
|
Power |
750W 1050W |
1050W 1500W |
1500W 2000W |
2100W 2500W |
|
Temperature range |
Serial DHG-9000A：RT+10～250℃ Serial DHG-9000B：RT+10～300℃ |
|||
|
Temperature resolution |
0.1℃ |
|||
|
Constant temperature fluctuation |
±0.5℃ |
|||
|
Chamber Size(mm) |
340×320×320 |
400×350×500 |
450×550×550 |
500×600×750 |
|
Outer size(mm) |
485×500×615 |
545×535×790 |
595×735×845 |
650×785×1060 |
|
Package size (mm) |
540×650×695 |
605×680×895 |
655×870×950 |
710×935×1240 |
|
Shelves |
2Pcs |
|||
|
Timing range |
0～9999min |
|||
Key words: benchtop oven, hot air convection oven, lab test oven, vaccum lab test oven
