Customized industrial ovens and furnaces built based on your condition and specifications. Custom
designed and manufactured for processes that never existed before, and
our machines are borned with heats recycling system to reduce energy consumption.

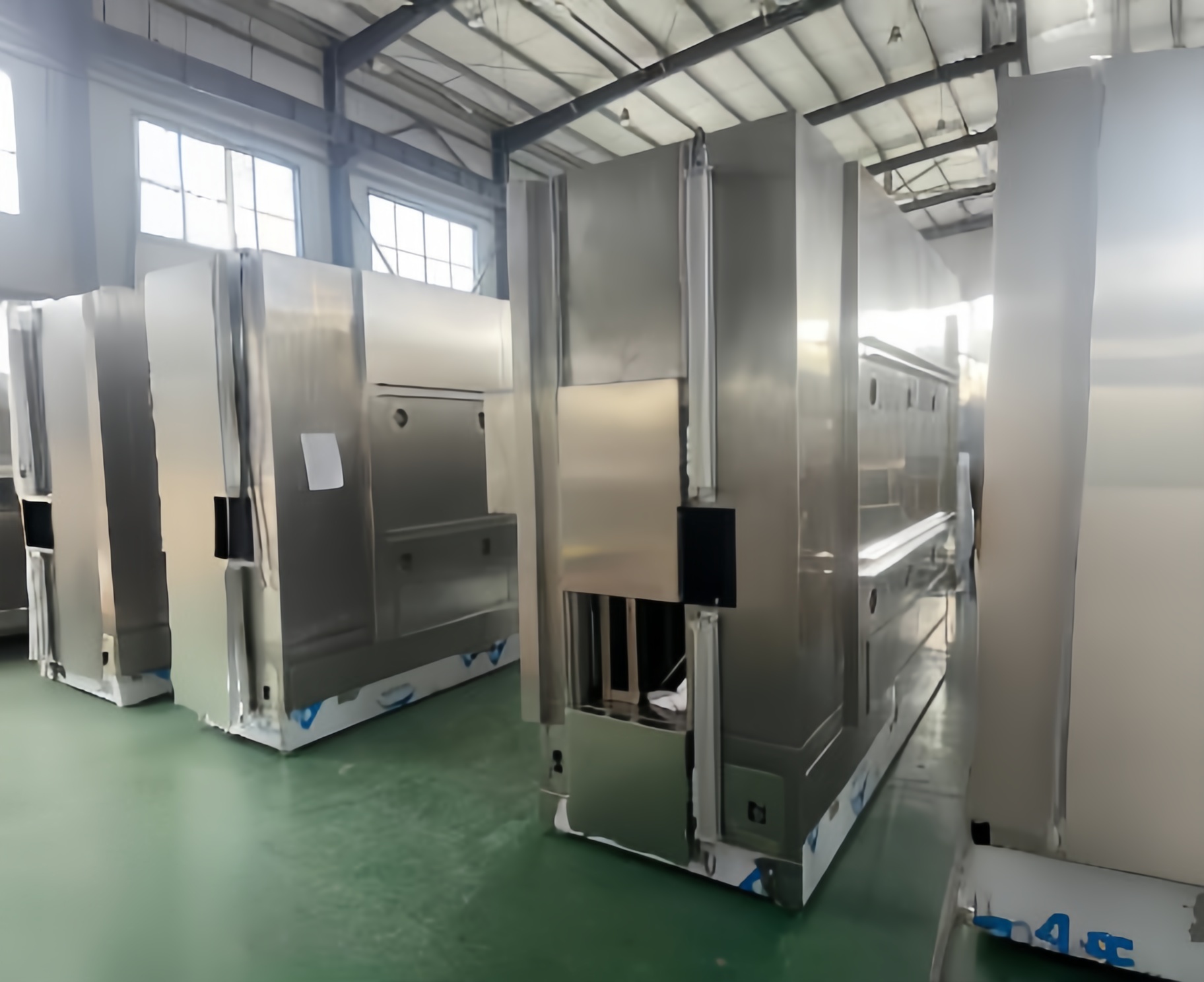

A batch oven for catheter annealing and curing, dust-free and anti-explosion. All of the oven is made from AISI304 stainless steel. Industrial hot air convection oven for medical industry.
This equipment is used to bake solvent-based products：Speedicath Flex CH 6-18 male & felmal, Boy 6-12, the solvent contains following organics:
Absolut ethanol
Triethyl Citrate
N-Methylpyrrolidone
Tetra-hydrofuran
The capacity of oven is 1440 pcs/h, 46 pieces per group. The door open will last 1.5min and close in 6s. The product contains ethanol, with contents 180g/h, 0.125g/pcs, and the evaporation time is 0.125g/(180/3600)=13S.
Heating time per product is ≥30min
Lower limit of explosion of LEL density is V≤25%

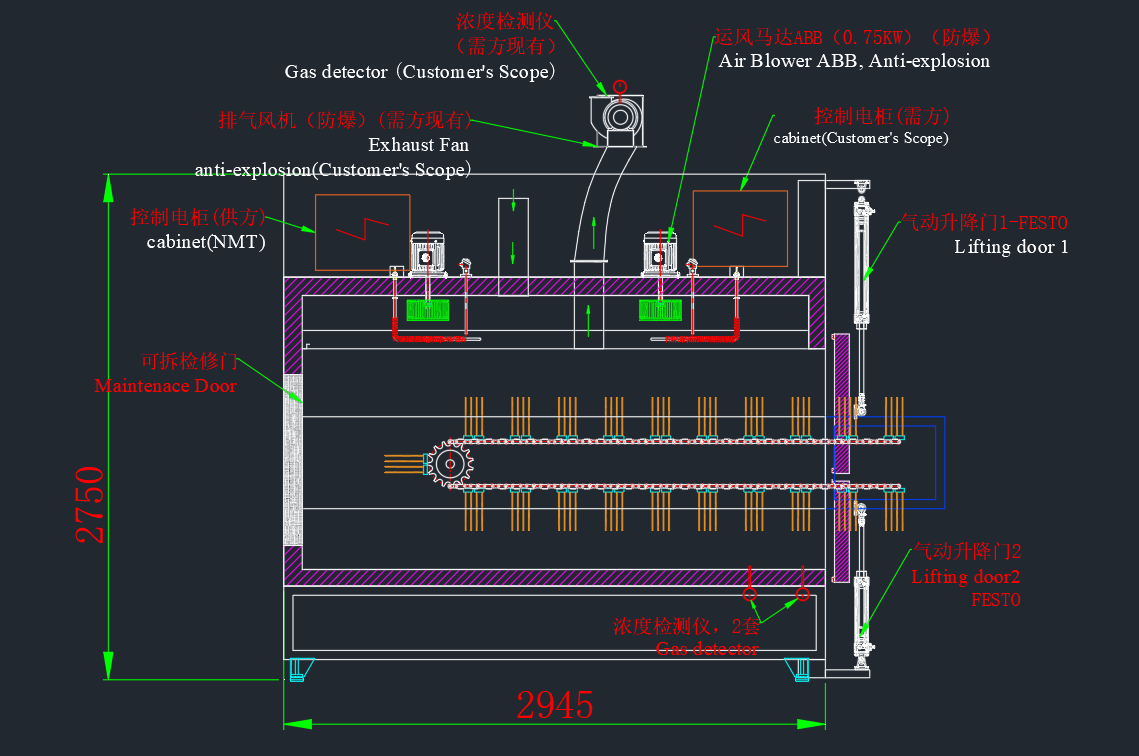

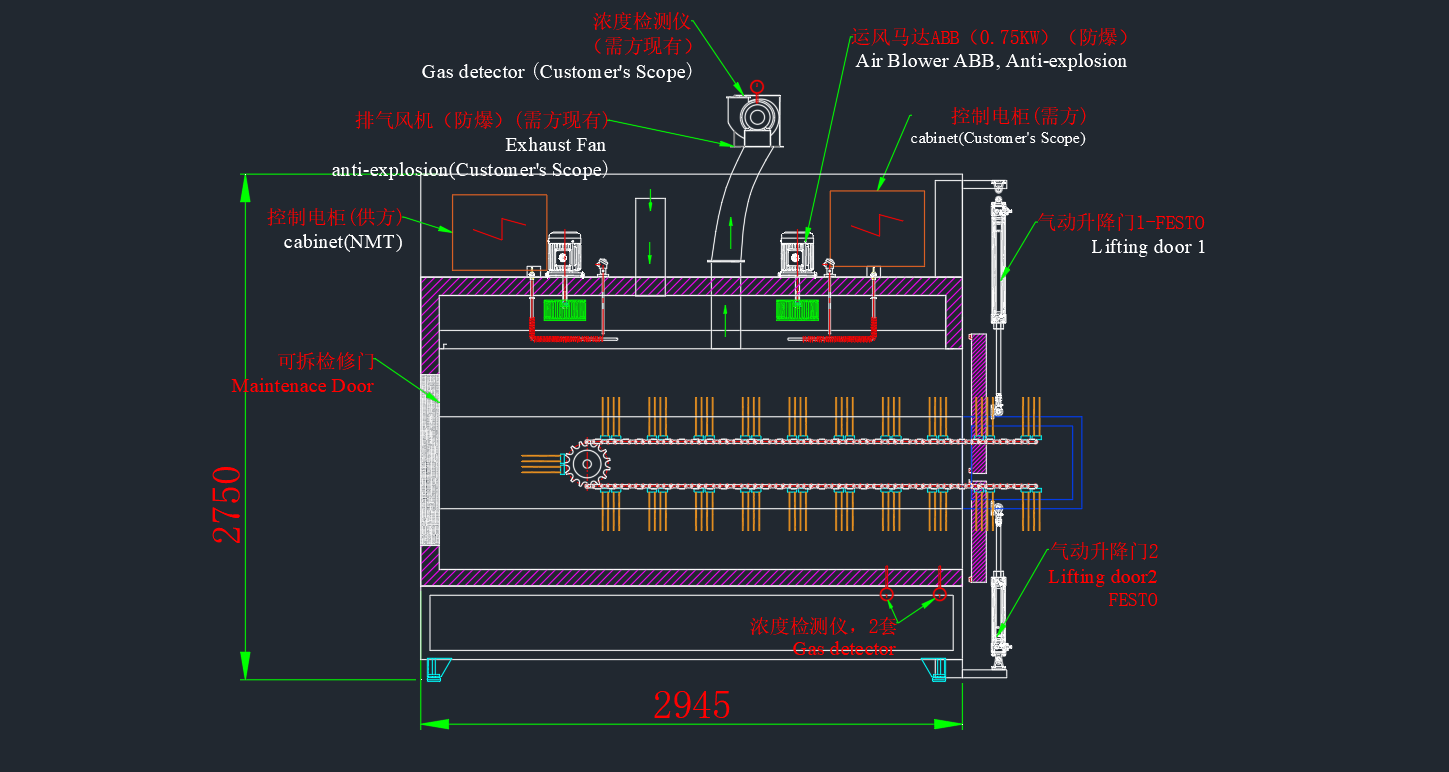

Besides, input of the oven is lifting door equipped with air knife. In side of the oven, hot air are recirculated in 3 directions. The heater and fans are anti-explosion types. At one side of the oven, a maintenace door is reserved for user to check and maintance the machine.
