Out shell material

Made of 1.5mm thick Cold plate, bending and welding

Surface treatment

1. Surface grinding, polishing, phosphating (can increase the corrosion resistance of metal, the adhesion of paint) treatment

2. High-temperature plastic spraying (big corrugated type), which can prevent rust and corrosion.

3. The color is "computer gray" or customized.

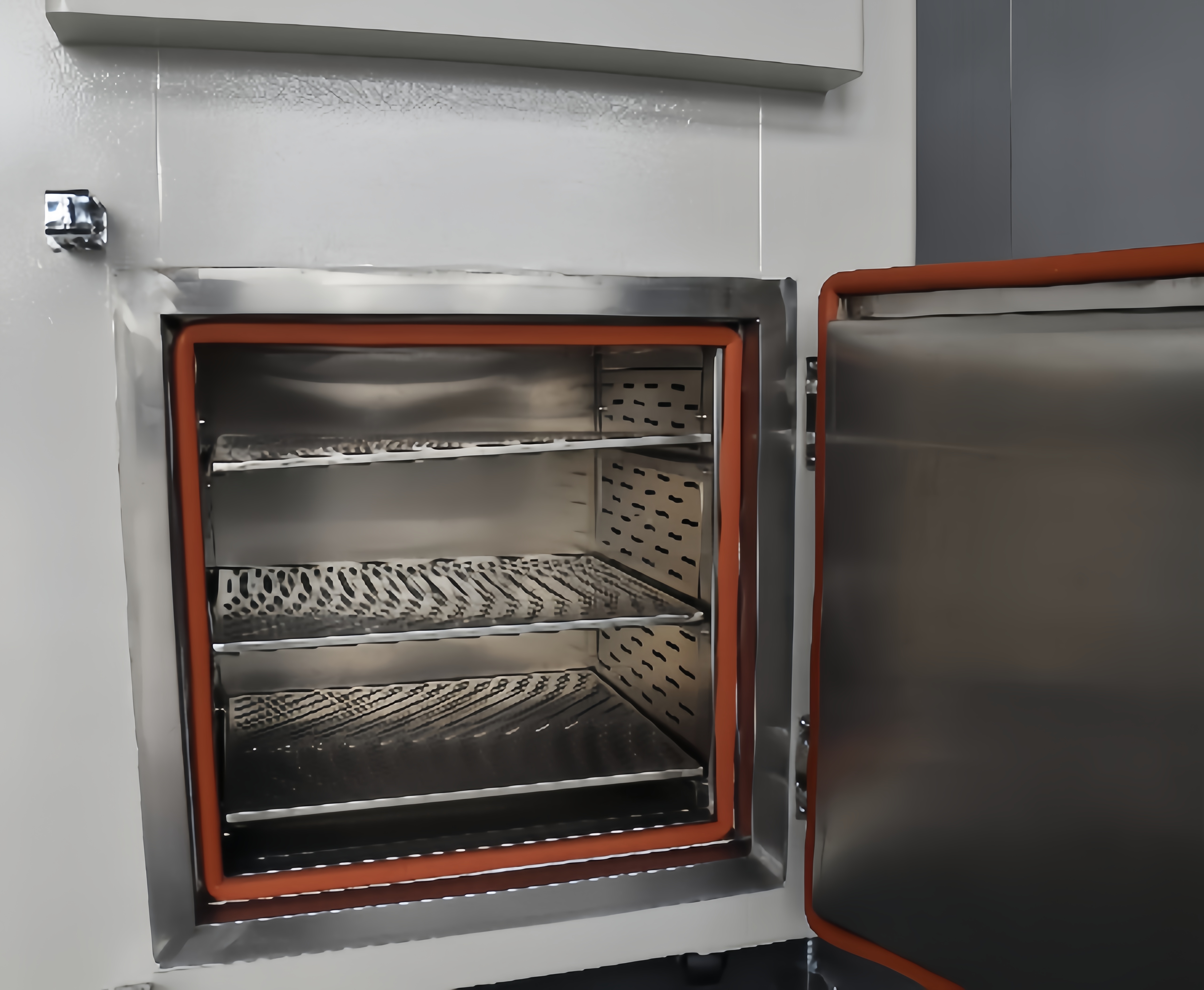

Chamber material

Made of 3.0mm thick SUS316 stainless steel plate

Oven support

It is made of 50*50*3mm angle steel, which maintains the bearing strength of each surface inside and outside the box, and retains the coefficient of thermal expansion and contraction, which can prevent the box from deforming.

Insulation material

It adopts 100K thicken ceramic wool, which is incombustible and has the characteristics of strong heat insulation. The thickness is 300mm.

Seal material

The sealing strip is made of glass fiber strip, which can withstand high temperature without deformation.

Caster and cup

1. The bottom is equipped with an adjustable foot cup, which is convenient to adjust the height and level of the box

2. The bottom is equipped with steering casters, which is convenient for moving the equipment

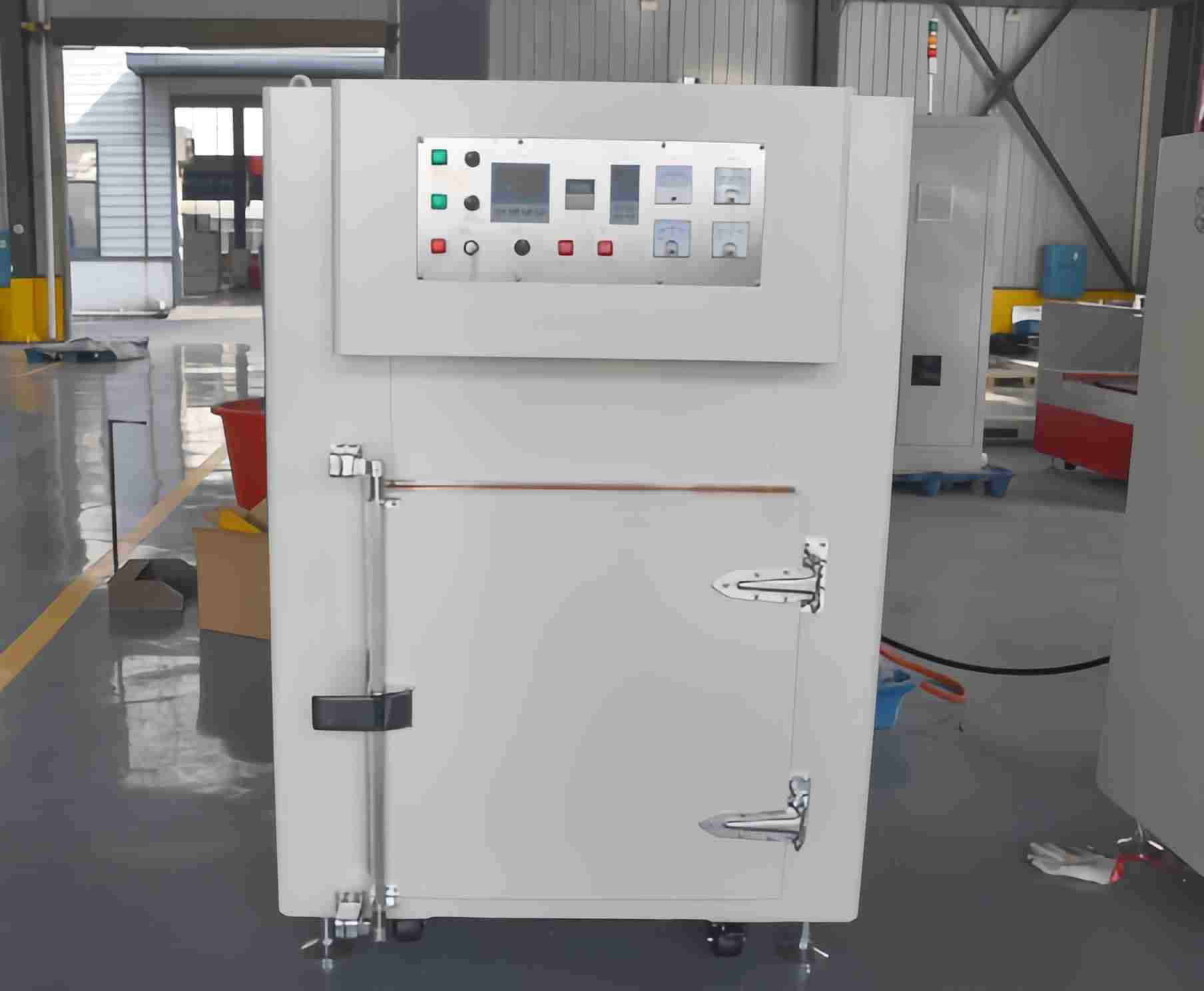

One side open door

The front side of the oven is one side open door

2chrome-plated reinforced hinges are installed on the left and right sides to prevent the door from sagging, and 1 chrome-plated explosion-proof square steel lock is installed in the middle, with strong pre-tightening force and easy operation

Air exchange

1. There is an air inlet with a regulating valve on the top of the box, and an air outlet with a secondary ventilation fan

2. The air flow can be adjusted to make the temperature in the oven more uniform

Recirculation

The top is equipped with 1 sets of 2.2kw air recirculation motors, with converter

Fan Turbine

With 9 inch stainless steel large turbine to recirculate the hot air

Heating pipe

U-shaped stainless steel 316 anti-explosion heating tube with heat sink is adopted, so the temperature of the heating tube can be evenly distributed

Hot Air Convection

The air is taken in from the air inlet of the oven to the air slot of the heating pipe, and the air is circulated inside the oven after being heated, and the exhaust gas is discharged from the exhaust port

Control system

Adopt Delta thermostat, PV and SV dual LED display function

Siemens Smart 200 PLC and 7’ HMI

Comes with P.I.D self-tuning module calculation output, precise control

Automatic constant temperature

The temperature controller can automatically calculate the output power according to the temperature value set by the user using PID. The closer it is to the temperature setting value, the smaller the output power is, so as to achieve the purpose of constant temperature control and save energy.

Over temperature controller

When the temperature exceeds the set value of the over-temperature protection thermostat, the heating power is automatically cut off

Timer setting

LED digital controller, the maximum time can be set to 99 hours, and the unit can be arbitrarily switched to hours, minutes, seconds

Heating pipe control

Adopt SSR power adjuster to control each group of heating tubes

Thermal sensor

Standard K-type thermocouple

Other

Control electrical appliances are Schneider or OMRON
