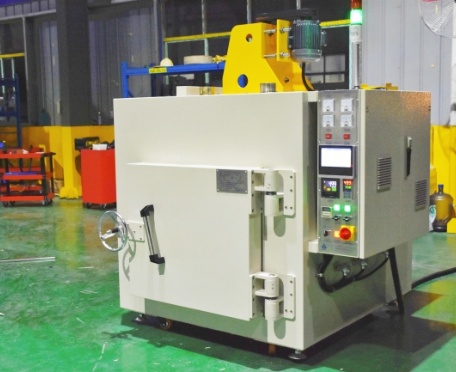

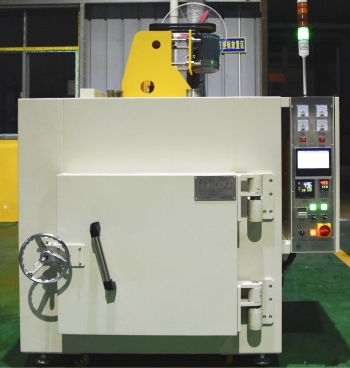

Customized industrial ovens and furnaces built based on your condition and specifications. Custom
designed and manufactured for processes that never existed before, and
our machines are borned with heats recycling system to reduce energy consumption.
Applications include Curing, baking, drying, preheating and tempering, and aging in industries such as aerospace, nanomaterials, silicone rubber, precision ceramics, powder metallurgy, Teflon coating, hardware, lithium batteries, chemicals, sporting goods, printing, pharmaceuticals, and automotive parts.
Main Parameter
Chamber size:W600*D600*H600mm
Outer dimension: W1300*D1100mm*H1510
Temperature range: Room temperature to 600℃ adjustable
Precision of instrument: no more than ±1℃
Temperature difference in chamber: no more than±6℃
Speed of temperature rise:<8℃/min
Out shell temperature: The temperature does not exceed ambient +20°C, except around the door.
Air recycles: Depends on the parts heated in the oven
Total power: 30KW
Other information:
Out shell material: Made of 1.5mm thick Cold plate, bending and welding
Chamber material: Made of 4.0mm thick galvanized steel
Hot air convection: The air is taken in from the air inlet of the oven to the air slot of the heating pipe, and the air is circulated inside the oven after being heated, and the exhaust gas is discharged from the exhaust port.
Control system: Adopt Delta thermostat, PV and SV dual LED display function, Siemens Smart 200 PLC and 7’ HMI,Comes with P.I.D self-tuning module calculation output, precise control
Automatic constant temperature: The temperature controller can automatically calculate the output power according to the temperature value set by the user using PID. The closer it is to the temperature setting value, the smaller the output power is, so as to achieve the purpose of constant temperature control and save energy.
Over temperature controller: When the temperature exceeds the set value of the over-temperature protection thermostat, the heating power is automatically cut off
Other function:
Audible alarm: Equipped with warning light with buzzer.
Grounding cable: Structural safety grounding protection.
Leakage Protection: Equipped with leakage protection switch
Power phase loss, phase sequence protection: Equipped with a phase sequence protector: to prevent the motor from being reversed when the power is reconnected, there is no strong wind, and the motor is burned out due to the lack of phase of the power supply.
Over temperature alarm: When the actual detected temperature exceeds the set value of the over-temperature protection thermostat, the heating power will be automatically cut off, and the sound and light alarm will be activated to play a double protection function.
